| Quantity: | |
|---|---|
Customized
DIN
Jobber-length
Center Drill Bit
High Speed Steel
Metal Drilling
SED-SD3-FSF
4mm-20mm
Fully Ground or Forged
200sets
PVC Bag,Setcase,Plastic Box,Metal Box
Original Color
PVC Bag, Blister Card, Plastic Box, Metal Box etc
ISO9001, SGS, CE
EASYDRILL
China
820750900
200, 000PCS/Month
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Product Description

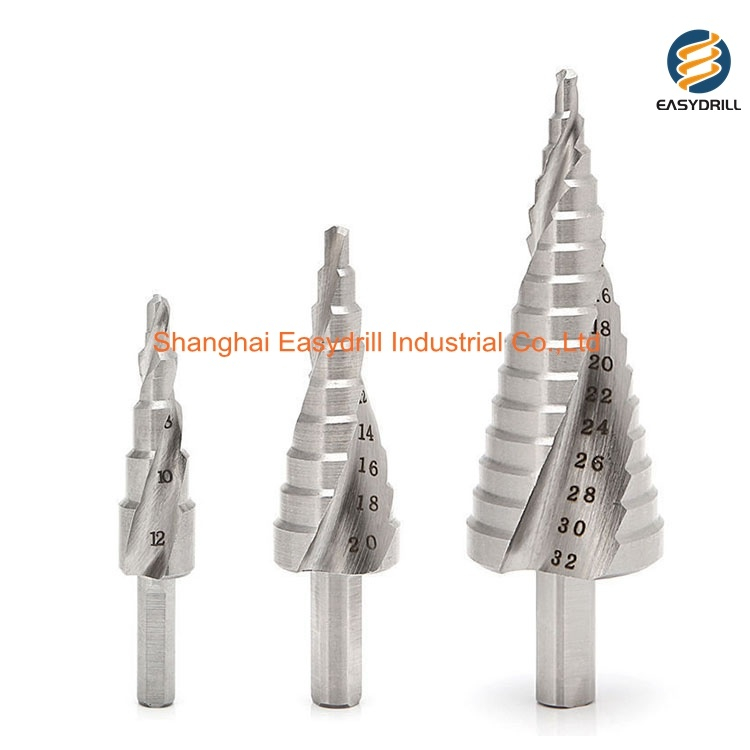

| Procuct Name | 3Pcs Three Flats Shank Spiral Flute Step Drill Bit Set For Sheet Tube Metal Drilling in Plastic Box |

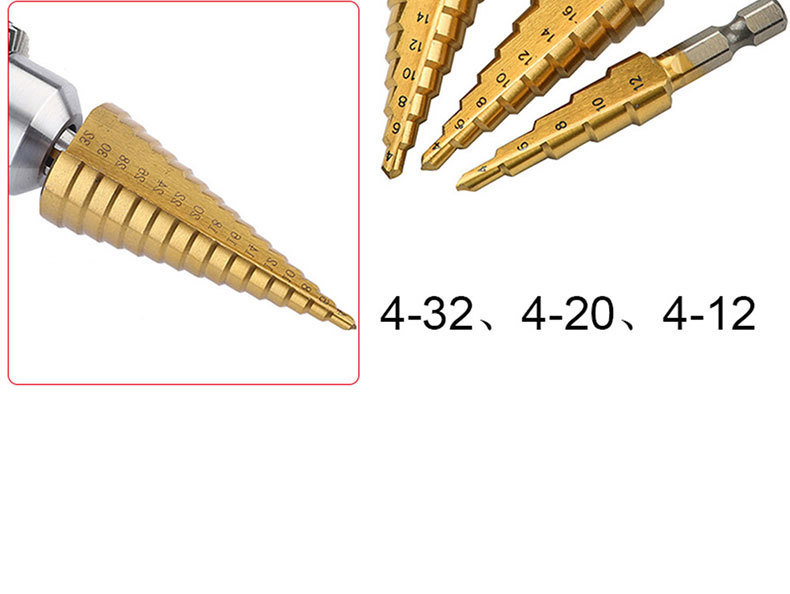

| Size | 4-12mm, 4-20mm, 4-32mm (Inch Size is Available) |
| Material | HSS (Cobalt M35 is Available) |
| Flute Type | Spiral Flute (Straight Flute is Available) |
| Flute Number | Two Flutes (Single Flute, Three Flutes are Available) |
| Shank | Three Flats Shank (Quick Change Hex Shank, Round Shank, Double R Shank are Available) |
| Surface Finish | Bright (TiN, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available) |
| Package | 3Pcs in Metal Box (Nylon Bag, Wooden Box, Plastic Box, Double Blister, Aluminum Case are Available) |
| Features | 1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm. 2. 135° Split Point Tip: increases cutting speed with self-centering and the drills do not run off center. 3. A variety of hole diameters can be drilled using only one tool. 4. The dimension of drilled hole is exact. 5. Two Flute Design: provides longer life and better chip removal. 6. The Spiral Groove: creates better, less noise, less force has to be used. 7. Only for rotary use. |
